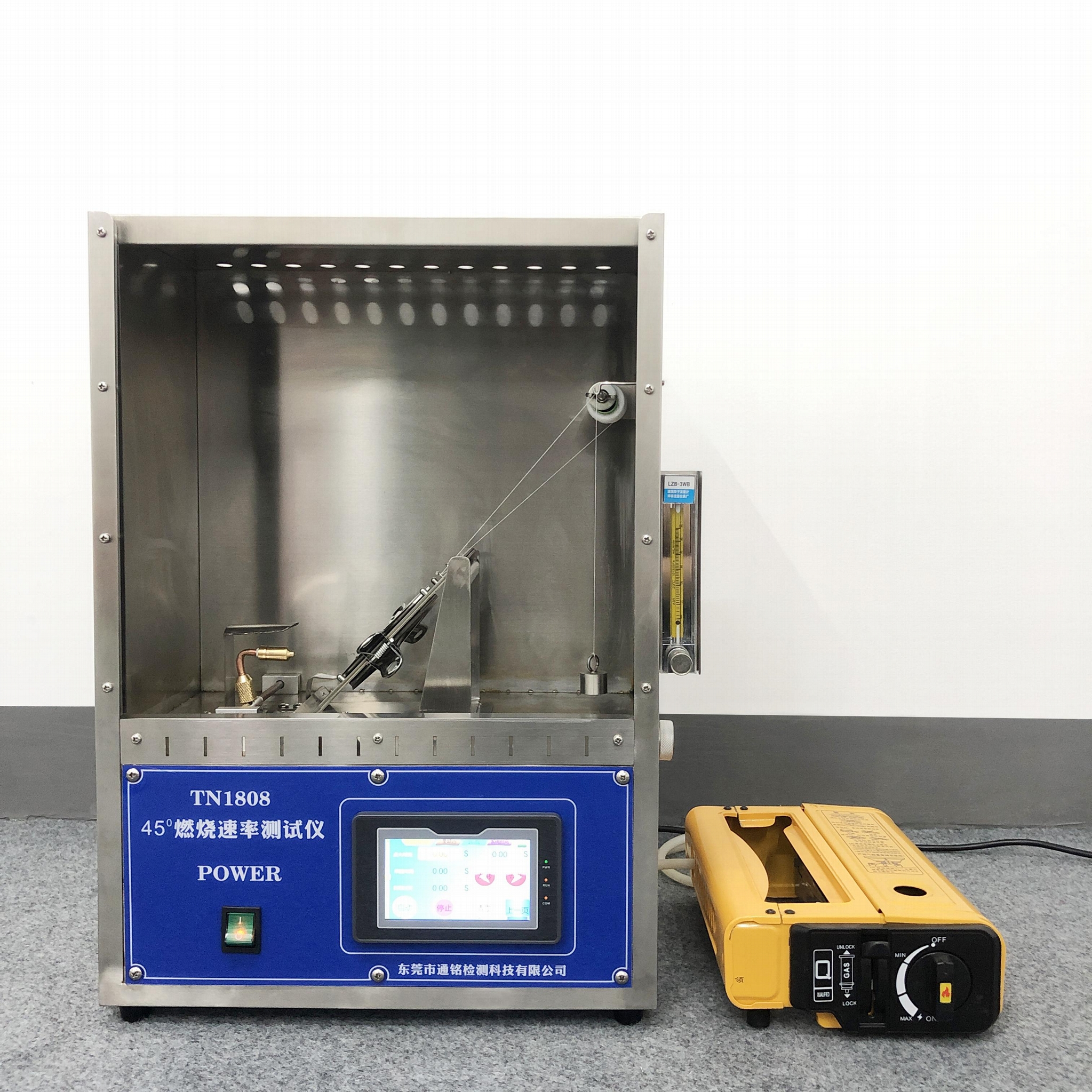

45 Degree Flammability Tester, Flammability Test Apparatus 16 CFR1610

Model No.︰

TN1808

Brand Name︰

TONNY

Country of Origin︰

China

Unit Price︰

US $ 2000 / SET

Minimum Order︰

1 SET

Share on:

Product Description


INTRODUCTION
To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition.
Brushing Device including Spare Nylon Brush.
T ECHNICAL PARAMETERS
1.Spread timing range : 0.1~99.9 s
2.Resolution : 0.1 s
3.Ignition time : 1±0.1 s
4.Burner : made of 4 1/2   syringe needle
Sample clip specification   : inner frame (152±0.2) mm× (38±0.2) mm
6. Distance from top of burner to sample surface   : 8   mm
7. Power supply   : AC 220V, 50/60 Hz, 20W
8. Weight   : about 30 kg
9. Dimension   : 37×23×54 cm (L×W×H)
S TANDARDS
16   CFR 1610,ASTM D1230, GB/T 14644,etc
ORDERING INFORMATION

Model / Item No.

Description

Configured ☑  / Optional □

TN1808

Host



1808-1

Sample clamps ×5



1808-2

Flame height gauge × 1



1808-3

Brushing device × 1



1808-4

N0.50 sewing line × 1



1808-5

Sample template × 1




Our products are all certified by international authority,national metrolog inspection center, won praise from customers all over the world ,including SGS,ITS,BV,TUV Sud,TUV Rheinland,CTI,etc

NEW TOTAL SOLUTIONS

HONOR AND CERTIFICATES

STANDARD PACKING

MULTIPLE TRANSPORTATION





Payment Terms︰ T/T / LC

Product Image
