Electronic Wrap Reel,Skein Winder ISO 2060,ASTM D1907

Model No.︰

TN11508

Brand Name︰

SafTonny

Country of Origin︰

China

Unit Price︰

US $ 1000 / set

Minimum Order︰

1 set

Share on:

Product Description

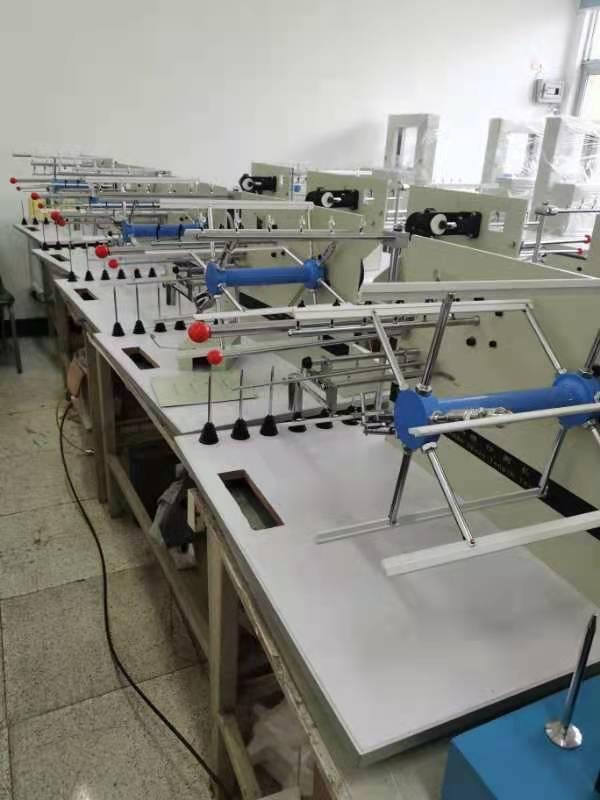

TN11508  Electronic Wrap Reel



INTRODUCTION

Used for testing the accurate length of yarns, the linear density or the count of textile yarns and the strength of skeins.

FEATURES AND BENETITS

1. Transmission mechanism: adopt the spring automatic fastening mechanism, automatically adjust the position of the motor, ensure the yarn frame stop accurate.

2. Counting part: the mechanical dial input, digital block display output, to achieve intuitive, but also improve the accuracy and reliability of the input part, prolong the service life of the counter.

3. Control part: single chip microcomputer control to ensure accurate action.

4. Adjustment part: soft start mode is adopted to prolong the service life of motor. KC05 can be controlled as the main component of the high-speed part to reduce the number of relays and enhance the stability and anti-interference of the machine. Automatic positioning function is adopted, and the last loop is controlled by program curing.

TECHNICAL PARAMETERS

1.Testing spindle number : 6 magentas

2.Spindles space : 60 mm

3.Winch circumference : 1000±1 mm,customized

4.Winch speed : 20~250 rpm ,adjustable

5.Palygorskite yarn laps : 1~9999

6.Shake yarn peciprocating distance of horizontal travel : 35±0.5 mm

7.Single yarn tension range : 0~100±1 cN

8.Power supply : AC220V, 50/60 Hz, 100 W

9.Dimension :78×66×48 cm

10.Weight : 53 kg

STANDARDS

ISO 2060,ASTM D1907,GB/T4743,GB/T14343,GB/T 6838



Our products are all certified by international authority,national metrolog inspection center, won praise from customers all over the world ,including SGS,ITS,BV,TUV Sud,TUV Rheinland,CTI,etc
